Theme Settings

The Theme Settings screen allows you to customize the appearance of the picoTracker interface, including fonts and colors.

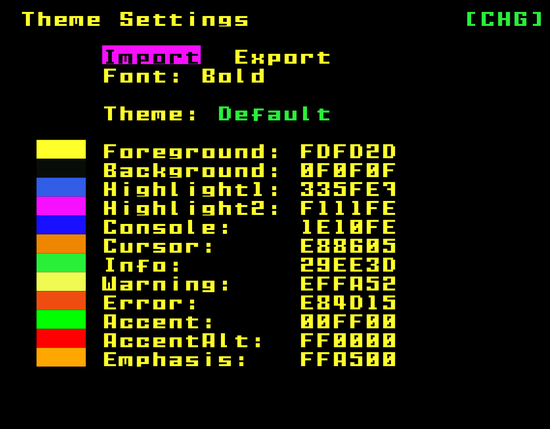

screen capture of theme settings screen

Accessing the Theme Settings

To access the Theme Settings screen, select the "Theme settings" option on the Device screen. You can return to the Device screen at any time by pressing the NAV+LEFT key combination.

Font

The font used for the picoTracker user interface. You can choose between:

When you change the font, the entire interface will update immediately to reflect your choice.

Color Themes

The picoTracker allows you to customize the color scheme of the interface. Each color is represented as a hexadecimal RGB value (e.g., FFFFFF for white). You can modify any of the following colors:

Name Default Use
Foreground ADADAD Normal text and UI elements
Background 0F0F0F Background color on all screens
Highlight1 846F94 Primary highlight color, used for row counts in song screen
Highlight2 6B316B Secondary highlight color, used for inverted highlights like screen labels
Console FF00FF Console text color
Cursor 776B56 Cursor color
Info 29EE3D Information displays, used for battery gauge OK level, vu meter normal level
Warning EFFA52 Warning displays, used for battery gauge low level, vu meter high level
Error E84D15 Error displays, used for battery gauge critical level, vu meter clipping level
Accent 00FF00 Primary accent color, used for playing track indicators and alternating row highlights
AccentAlt FF0000 Secondary accent color, used for muted track indicators, alternating row highlights, and FE chain values in Song View
Emphasis FFA500 Used for emphasis elements like major beat (quarter note) indicators in the Phrase view and 00 chain values in Song View

Note: Accent and AccentAlt are used to mark every block of 4 rows in each of the "grid views", currently this row count value is not a user setting.

Color Swatches

Next to each color setting, a small color swatch is displayed to show you the current color. This makes it easier to visualize your changes as you adjust the colors.

Saving Changes

All changes to the theme settings are automatically saved to the SD card as you make them. This ensures your customized theme will be preserved even when you power off the picoTracker.

Importing and Exporting Themes

picoTracker allows you to import and export theme files (.ptt), making it easy to share your custom themes with others or back up your favorite color schemes.

Exporting a Theme

  1. Navigate to the Theme settings screen
  2. Press the EXPORT button (or NAV+EXPORT if using a different control scheme)
  3. Enter a name for your theme using the on-screen keyboard
  4. Press ENTER to confirm

Your theme will be saved as a .ptt file in the themes directory on your SD card. If a theme with the same name already exists, you'll be asked if you want to overwrite it.

Importing a Theme

  1. Navigate to the Theme settings screen
  2. Press the IMPORT button (or NAV+IMPORT if using a different control scheme)
  3. Browse the file list to find the .ptt file you want to import
  4. Select the file and press PLAY to import it

The imported theme will be immediately applied to the interface. The theme name will be updated to match the imported file's name (without the .ptt extension).

Theme File Location

Tips for Creating Custom Themes
